Flow Diversion
Flow Diversion

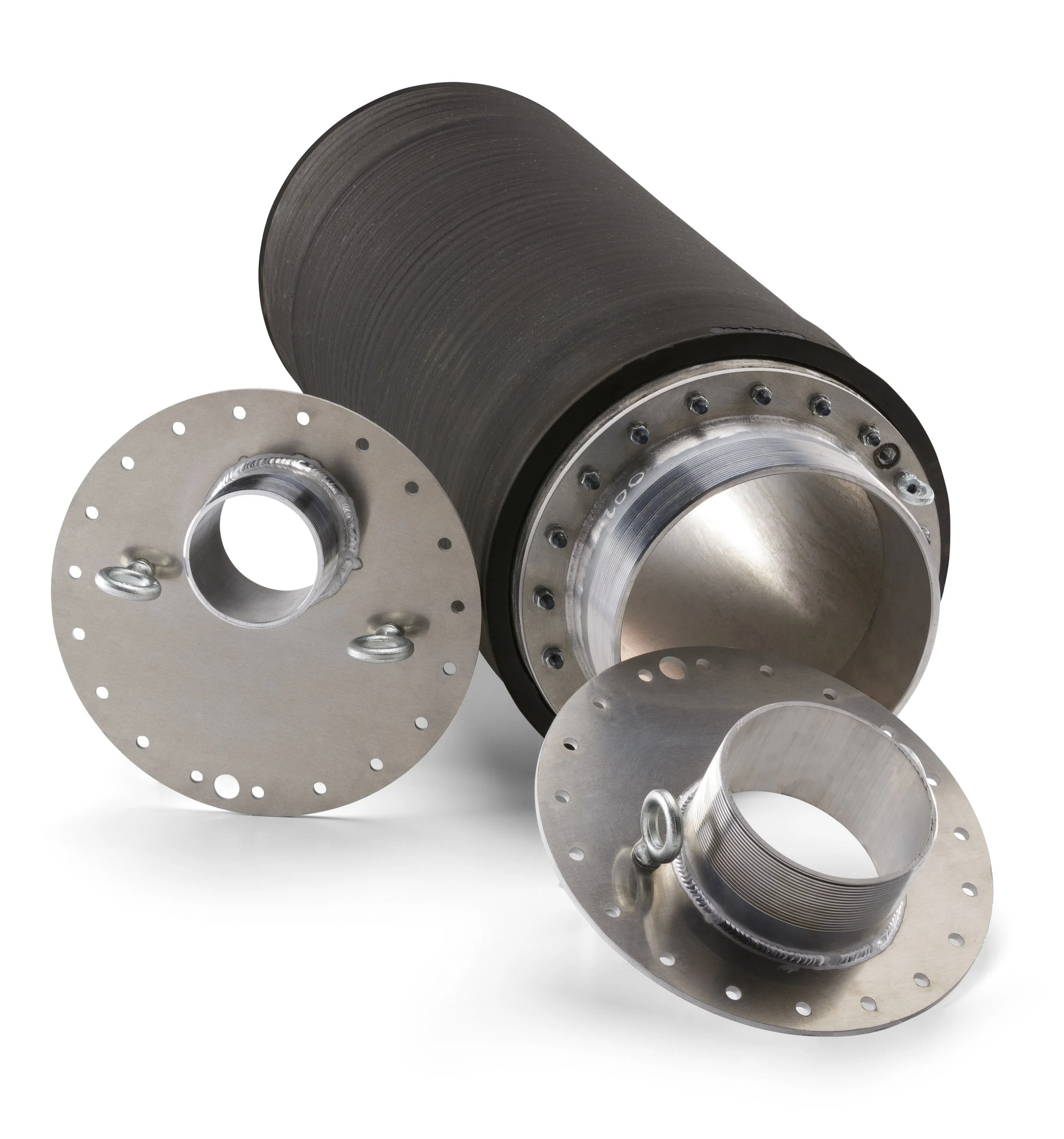

We stock Multi-Size Air Filled Flow Diversion Pipe Plugs, stocked rental sizes ranging from 4” – 36” and flow diversion ports from 2” – 10”, other sizes available upon request.
Uses
Maintaining flows within pipelines as needed or bypass pumping through the plug port.
Optional Accessories
Self-resetting relief valve, Inflation Rope and Hose with Gauge, Compressor Hose, Read Back Hose with Gauge, and Line Filler Compressor Hose.
| PART NUMBER | SIZE RANGE | DIAMETER | LENGTH | WEIGHT | INFLATION PRESSURE |
|---|---|---|---|---|---|
| 400-48-2 | 4.0”-8.0” | 3.8” | 22.0” | 7.0 LBS | 40 PSI |
| 400-610-3 | 5.5”-10.5” | 5.5” | 22.0” | 13.0 LBS | 40 PSI |
| 400-812-4 | 7.0”-12.5” | 6.5” | 22.0” | 18.0 LBS | 40 PSI |
| 400-1218-6 | 10.5”-18.0” | 10.0” | 22.0” | 34.0 LBS | 40 PSI |
| 400-1830-F | 16.5”-30.0” | 16.0” | 41.0” | 95.0 LBS | 40 PSI |
| 400-2436-F | 22.0”-36.0” | 21.5” | 41.0” | 130.0 LBS | 40 PSI |
