Manhole Shield

Manhole Shield

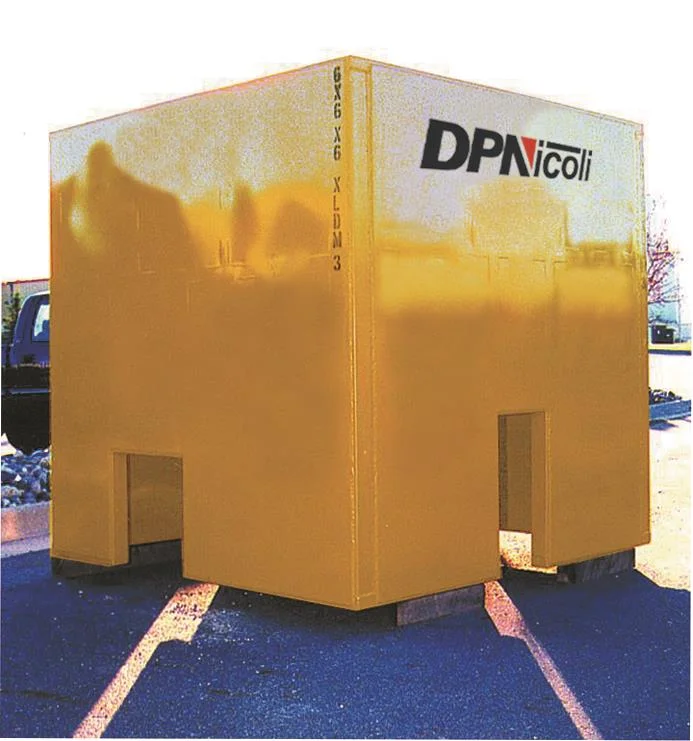

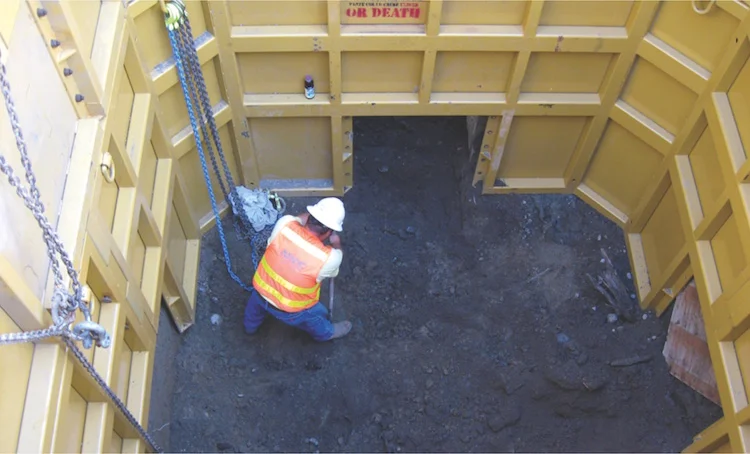

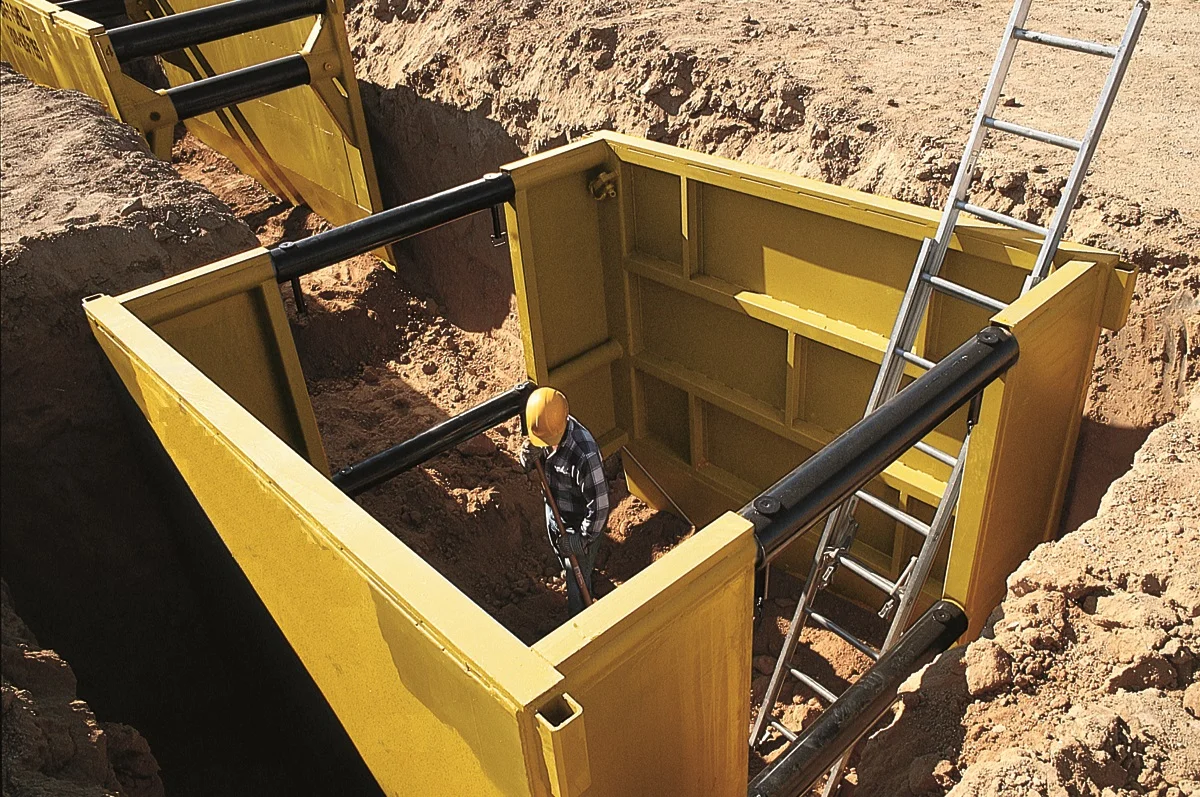

Manhole shields provide protection for manhole installations, small-bore pit shoring, and other applications requiring four-sided protection within a relatively small area. DPN offers square, round, and octagonal shields that are safe, convenient and easy to install. Manhole shields have the ability to stack to increase height for deeper excavations.  Some shields also have cutouts along bottom edge of sides to allow for use with crossing utilities.  Legs can also be used for additional clearance.

Uses

Manhole installation, small-bore pit shoring, and similar tasks requiring 4-sided protection in a relatively small area.

Optional Accessories

2' Legs, lifting chains, different length spreaders.

HEIGHT LENGTH WIDTH SIZE (SQ FT) WEIGHT LBS PIPE CLEARANCE SHIELD CAPACITY PSF MAX DEPTH IN SOIL TYPE: A MAX DEPTH IN SOIL TYPE: B MAX DEPTH IN SOIL TYPE: C 60
4' 8' 8' 2972 - 1423 56' 31' 23'
8' 8' 8' 5639 45" 1423 56' 31' 24'
4' 10' 10' 3335 - 1560 60' 34' 26'
8' 10' 10' 6312 45" 1423 50' 29' 23'
8' 12' 12' 7200 52" 1320 53' 29' 22'
4' 12' 12' 4680 - 1200 48' 27' 20'
HEIGHT LENGTH WIDTH SIZE (SQ FT) WEIGHT LBS PIPE CLEARANCE SHIELD CAPACITY PSF MAX DEPTH IN SOIL TYPE: A MAX DEPTH IN SOIL TYPE: B MAX DEPTH IN SOIL TYPE: C 60
4' - 8.5 920 0" 1920 32' 32' 32'
8' - 8.5 1609 0" 1920 32' 32' 32'
8' - 8.5 2319 0" - 40" 1649 25' 25' 25'
HEIGHT LENGTH WIDTH SIZE (SQ FT) WEIGHT LBS PIPE CLEARANCE SHIELD CAPACITY PSF MAX DEPTH IN SOIL TYPE: A MAX DEPTH IN SOIL TYPE: B MAX DEPTH IN SOIL TYPE: C 60
4' 8' 8 1200 - 925 30' 30' 15'
6' 8' 8 1500 - 925 30' 30' 15'
8' 8' 8 2000 - 925 20' 20' 15'
HEIGHT LENGTH WIDTH SIZE (SQ FT) WEIGHT LBS PIPE CLEARANCE SHIELD CAPACITY PSF MAX DEPTH IN SOIL TYPE: A MAX DEPTH IN SOIL TYPE: B MAX DEPTH IN SOIL TYPE: C 60
4' 8' 8 1007 - 1500 40' 33' 25'
6' 8' 8 1800 - 1500 40' 40' 25'
8' 8' 8 2337 - 1500 40' 40' 25'
